OVERVIEW

R8 Core is focused on maximum versatility and applies new revolutionary R8 material technology through our forward-thinking lens of what we're seeing out on the water - where one rod needs to show even greater range. At its core, R8 Core traces a direct lineage to Sage's multi-application / fast action vision, one shaped by the fishing evolutions happening all around us—from habitats we stalk and waters we frequent, to the flies we fish and the diversity of species we now target. Coming in a range from 3wt to 9wt, with a variety of lengths from 8'6" to 10'0", there's sure to be a model to fit the core needs of every freshwater angler.

R8 Core 990-4 - All Models

Model	Line Size	Rod Length	Handle	Color	Pieces	Physical Weight	SKU
R8 Core 390-4	3WT	9'0"	Standard Handle	Silver Pine	4	2 5/8oz	2054-390-4
R8 Core 4100-4	4WT	10'0"	Standard Handle	Silver Pine	4	3 1/8 oz	2054-4100-4
R8 Core 486-4	4WT	8'6"	Standard Handle	Silver Pine	4	2 9/16oz	2054-486-4
R8 Core 490-4	4WT	9'0"	Standard Handle	Silver Pine	4	2 11/16oz	2054-490-4
R8 Core 5100-4FB	5WT	10'0"	Fighting Butt Handle	Silver Pine	4	3 1/2oz	2054-5101-4
R8 Core 586-4	5WT	8'6"	Standard Handle	Silver Pine	4	2 9/16oz	2054-586-4
R8 Core 590-4	5WT	9'0"	Standard Handle	Silver Pine	4	2 11/16oz	2054-590-4
R8 Core 596-4FB	5WT	9'6"	Fighting Butt Handle	Silver Pine	4	3 1/4oz	2054-597-4
R8 Core 6100-4FB	6WT	10'0"	Fighting Butt Handle	Silver Pine	4	3 9/16oz	2054-6101-4
R8 Core 690-4	6WT	9'0"	Standard Handle	Silver Pine	4	2 13/16oz	2054-690-4
R8 Core 690-4FB	6WT	9'0"	Fighting Butt Handle	Silver Pine	4	3 1/4oz	2054-691-4
R8 Core 696-4FB	6WT	9'6"	Fighting Butt Handle	Silver Pine	4	3 3/8oz	2054-697-4
R8 Core 7100-4	7WT	10'0"	Fighting Butt Handle	Silver Pine	4	3 15/16oz	2054-7100-4
R8 Core 790-4	7WT	9'0"	Fighting Butt Handle	Silver Pine	4	3 7/16oz	2054-790-4
R8 Core 796-4	7WT	9'6"	Fighting Butt Handle	Silver Pine	4	3 11/16oz	2054-796-4
R8 Core 8100-4	8WT	10'0"	Fighting Butt Handle	Silver Pine	4	4oz	2054-8100-4
R8 Core 890-4	8WT	9'0"	Fighting Butt Handle	Silver Pine	4	3 11/16oz	2054-890-4
R8 Core 896-4	8WT	9'6"	Fighting Butt Handle	Silver Pine	4	3 13/16oz	2054-896-4
R8 Core 990-4	9WT	9'0"	Fighting Butt Handle	Silver Pine	4	3 13/16oz	2054-990-4

R8 CORE

DETAILS

Revolution 8 Technology

Silver Pine blank color

Slate primary thread wraps with graduated White and Grey trim

Fuji ceramic stripper guides with hard chromed snake guides and tip-top

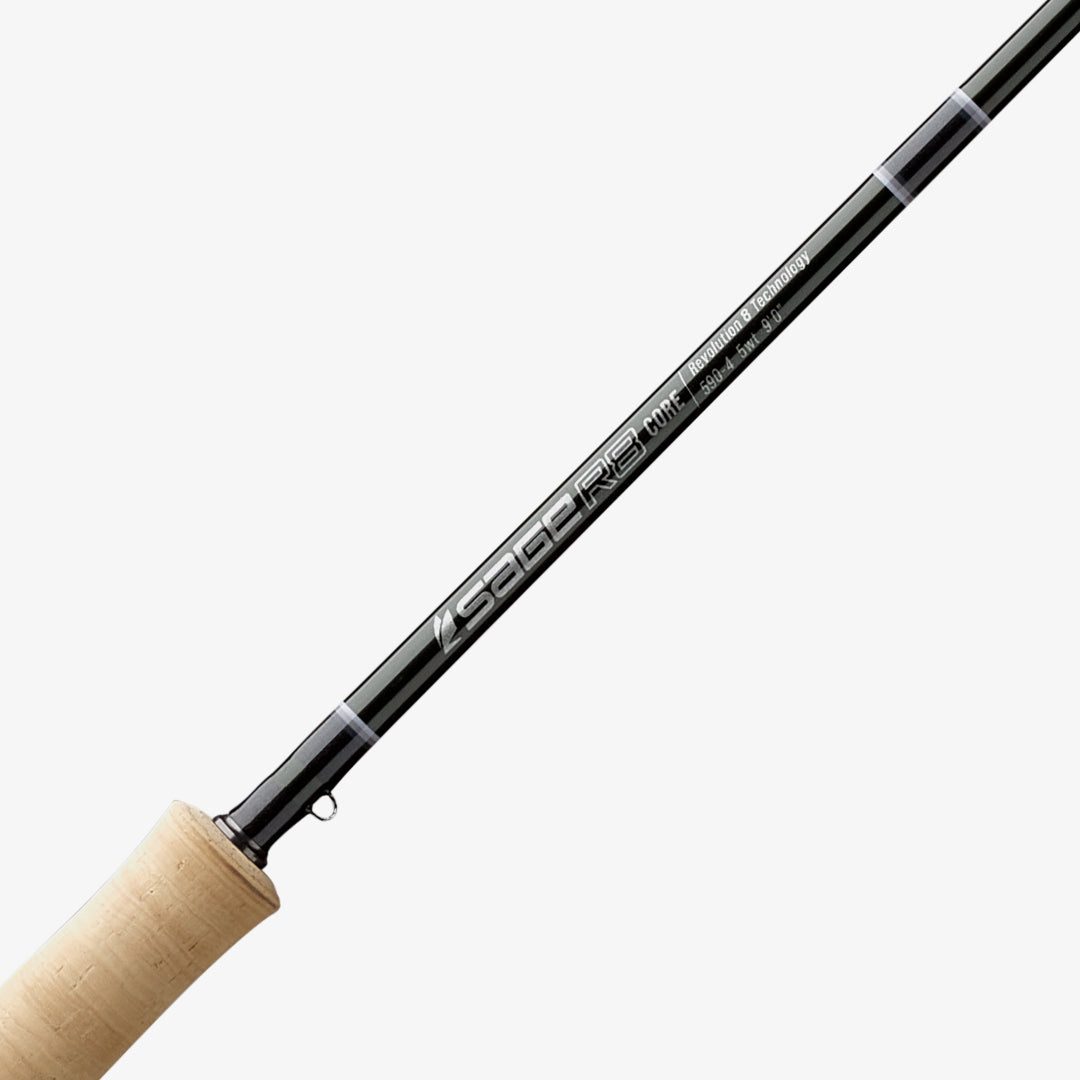

Laser etched line weight on slide band

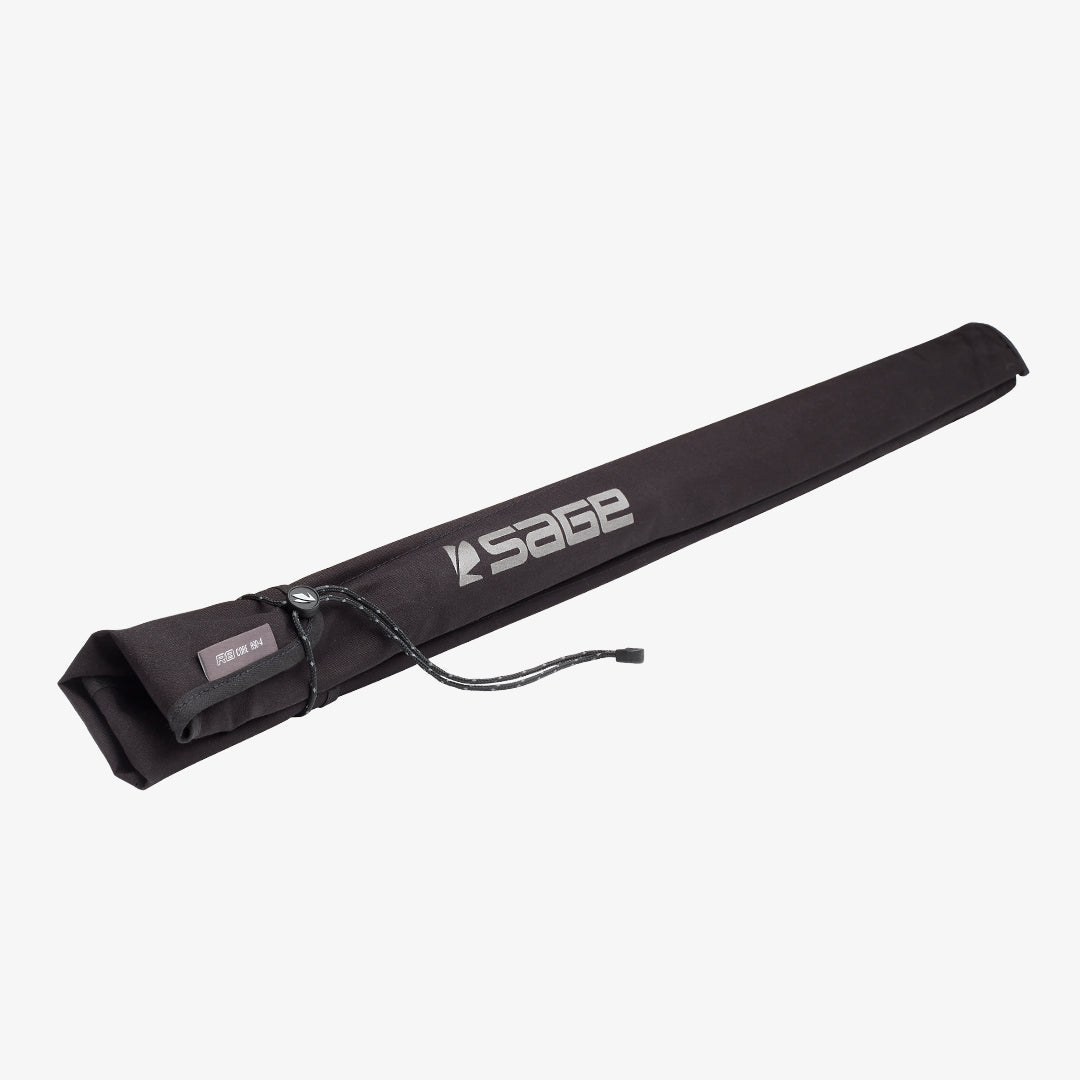

Black rod bag with new quick-tie cord lock for faster, easier, and cleaner storage

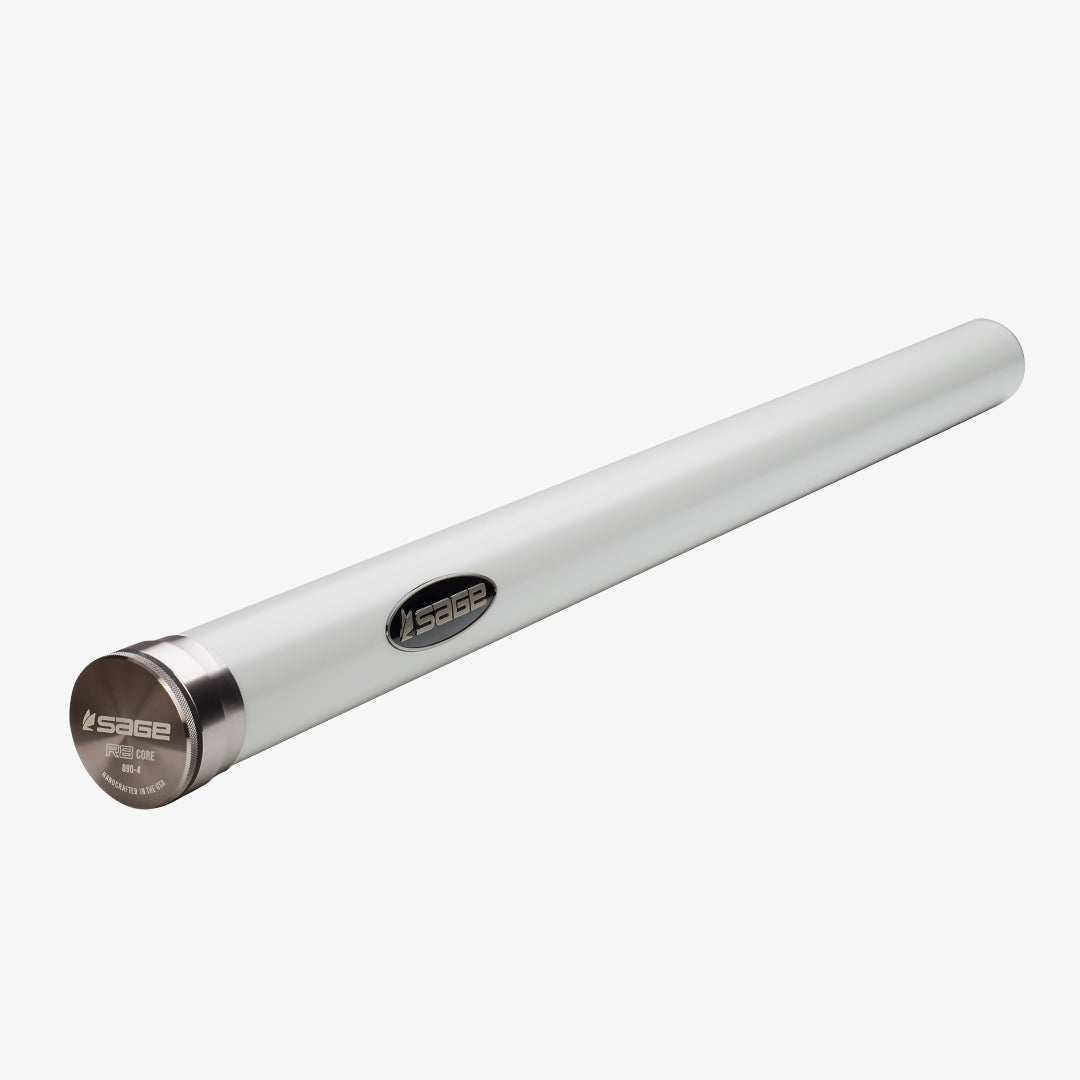

Aluminum rod tube with Sage medallion

3WT - 6WT

Premium Flor grade snub-nose half-wells cork handle

Sustainable Ziricote wood insert with anodized aluminum up-locking reel seat

5WT - 9WT

Premium Flor grade full-wells cork handle with cork/EVA fighting butt

Gunmetal anodized aluminum up-locking reel seat

Integrated hidden hook keeper in reel seat

BEHIND THE R8

MAXIMIZED VERSATILITY

1 / 3

Dry Fly

A fast action provides the capability to stay tight to the line and in control of the presentation, while the high line speed drives a tight loop that assists in laser accuracy in technical dry fly situations. With ability to handle dry fly lines with long heads, increasing loop control when carrying long lengths and making precise casts to rising fish, all while making it easier to turn over long leaders for technical feeders at range.

2 / 3

Nymphing

With a sensitive tip section to protect light tippets, a versatile balance between lifting power and delicacy provides perfect synergy for nymph fishing. A very effective tool for anglers that fish nymphs and indicators wading or out of a boat. With a combination of power and feel,R8 Core allows for intuitively better cast timing, easier line lifts and sharp, precise mends leading to faster reaction times when setting the hook.

3 / 3

Streamers

A powerful butt section easily throws a wide range of streamers and accommodates a full lineup of sinking tip lines while also quickly pulling aggressive fish out of structure for increased landing success. The powerful butt section of the R8 CORE provides stability, connectedness, and power to rock and fire those one-shot casts.

MADE TO FISH, NOT JUST CAST

1 / 3

Mending

With feel that extends to the smallest dry flies, R8 provides the touch to deliver efficient mends with intention and precision.

2 / 3

Setting

From subtle sips to streamer strikes, the amplified sensitivity of R8 enables fine nibble feel that triggers instant, instinctual reaction for trout sets or strip sets.

3 / 3

FISH FIGHTING

With a fish on, R8’s fusion of stronger backbone yet greater feel enables you to control your fish, even from tough structure, with touch and care.

SHAPING 8 REVOLUTIONS IN HOW WE FISH

R8 TECHNOLOGY

The advanced, leading-edge material behind R8 enables us to shape a rod with a stiffer, stronger backbone but a more sensitive tip and more connected feel. The secret is twofold. First, a proprietary aerospace composite with a greater hoop strength enables us to dimensionally grow taper diameter more quickly from the tip—while a nano-sintered resin application increases axial resilience and allows us to pack more fiber into the blank, resulting in that true two-way connection from hand to fly and back for greater feel, flow and control.

1 / 3

New Axial Fiber Formulation

Advanced nano-sintered resin application and a more resilient axial fiber allow us to re-profile the dimensional taper to get thicker quicker from tip to butt - resulting in better energy transfer and greater feel. Simply put - a better and more efficient "wiring" of energy.

2 / 3

EFFORTLESS ENERGY TRANSFER

Elongated energy transfer shifts the sweet spot closer to the hand creating a more natural extension of your arm for greater range, quicker reactivity and less wasted effort.

3 / 3

New circumferential hoop fiber

Advanced hoop fibers hold blank in optimal cylindrical shape creating greater circumferential strength - continuously maintaining inherent taper profile while actively engaged or under tension.

MADE IN THE USA

We’re not a big faceless factory, but rather a workplace of craftspeople who design and build the world’s best fly rods and reels using our hands and hearts. We do it by sharing ideas and always asking the next question to find what can be done to make this better. Our rods are built one at time right here on Bainbridge Island, WA, following hundreds of meticulous steps and passing through 23 sets of hands. We’re out there fishing the same places in the same unforgiving conditions that you are. Craftsmanship is applied experience. Lifetimes of it.
